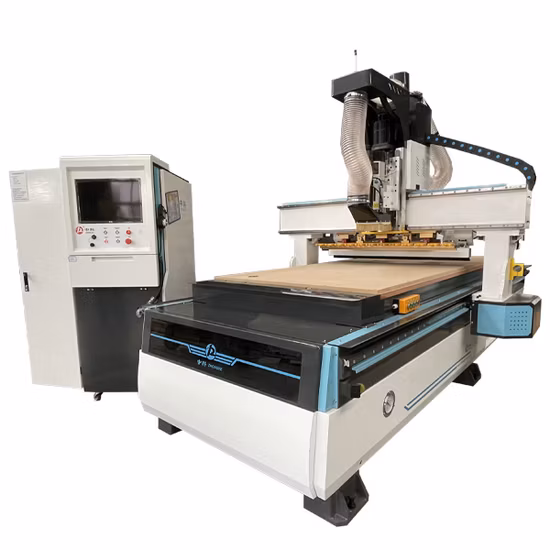

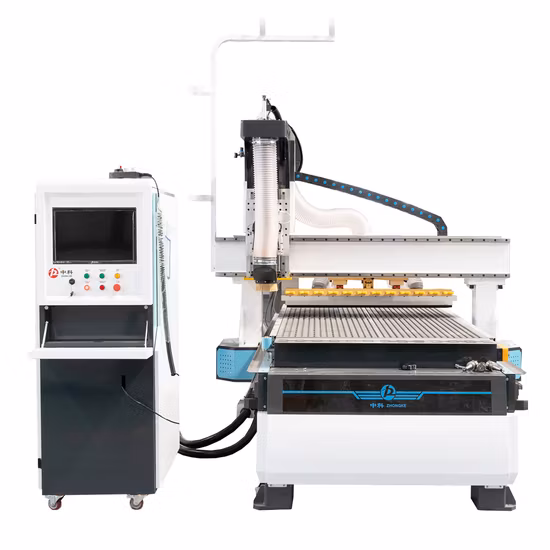

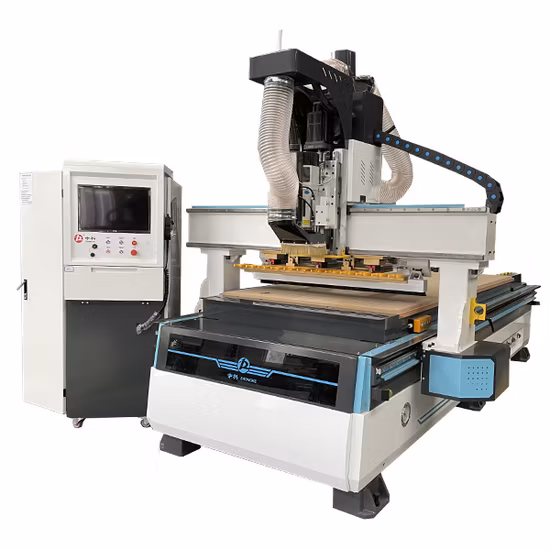

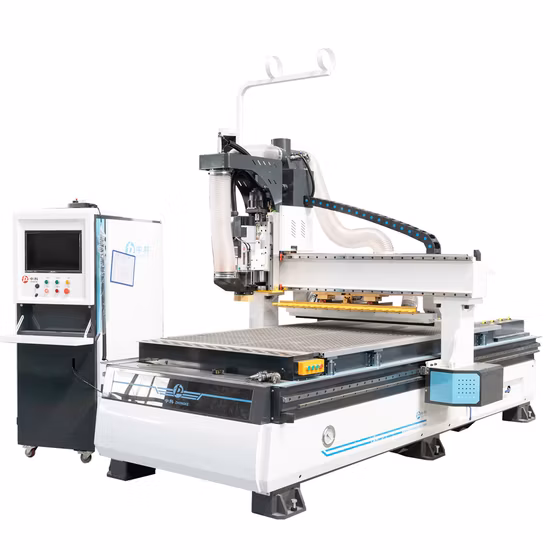

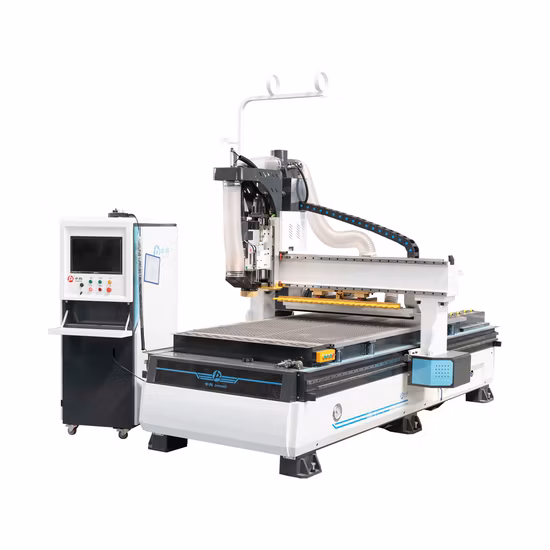

Auto Tool Changing 12 Cutters Nesting CNC Machine

Basic Info

Model NO.	1328
Certification	CE
Customized	Customized
Condition	New
Color	Customized
After-sales Service	Online Service
Working Area	1300*2500mm
Spindle	9kw Hqd Air Cooling Spindle
Motors	Servo Motor
Table	Vacuum Table
Spindle Speed	0-24000rpm
Dust Collector	5.5kw with Two Bags
Changing Cutters Way	Automatically Changing Cutters
Package Type	Exporting Plywood Package
Delivery	20 Working Days
Key Words	Atc CNC Router
Controller	Taiwan Syntec Control System
Vacuum Pump	7.5kw
Package	Exporting Plywood Package
After-Service	24 Hours Online Service
Motor	1.5kw Big Power Servo Motor
Transport Package	Exporting Plywood Package
Specification	CE
Trademark	ZHONGKE
Origin	Jinan, China
HS Code	8465990000
Production Capacity	10 Sets/ Month

Product Description

This is one model auto tool changing cnc router, it can change 12 pieces cutters automatically, it is professionally used for cabinets doors, cabinets tables, wood door,etc producing, also can be used for wood mold, other furniture engraving and cutting job.

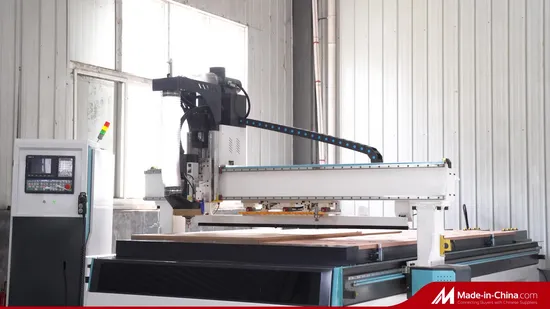

Detailed Photos

Product Parameters

Description	Parameter
X,Y,Z Working Area	1300x2500x200mm
X,Y,Z Traveling Positioning Accuracy	±0.03/300mm
Table Surface	Vacuum and Table
Frame	Welded Structure,8mm heavy duty T-structure
X, Y Structure	Helical Rack gear, Taiwan Hiwin Rail Linear Bearings
Z Structure	Taiwan TBI Ball Screw Taiwan Hiwin/PMI Rail Linear Bearings
Max. Power Consumption	2.0KW (without spindle)
Max. Rapid Travel Rate	45000mm/min
Max. Working Speed	30000mm/min
Spindle Power	9.0kw ATC air cooling spindle
Spindle Speed	12000-24000RPM
Drive Motors	servo motor and driver Leadshine
Working Voltage	AC380V/50/60Hz,3PH
Control System	Taiwan SYNTEC control system
X,Y Resolution	<0.01mm
Software Compatibility	Type3 Software, (Option: Artcam Software)
Running Environment Temperature	0 - 45 Centigrade
