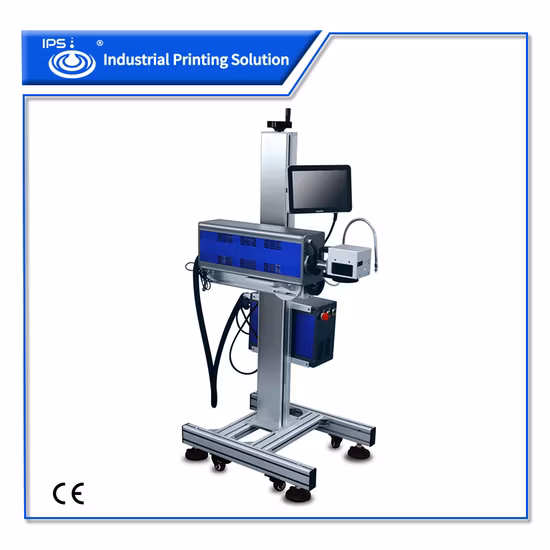

High Speed 30W Glass Date Fly CO2 Laser Marking Engraving Machine for Transparent Pet Water Bottle with CE

Basic Info

Model NO.	IPS-LC30F
Laser Visibility	Visible
Applicable Material	Nonmetal
Cooling System	Air Cooling
Technical Class	Pulse Laser
Laser Wavelength	CO2 Laser
Laser Classification	Solid Laser
Type	CO2 Laser Marking Machine
Marking Method	Scanning Marking
Part No	IPS-LC30f
Laser Power	30W
Wavelength	10.64 Micron /9.3 Micron
Overrall Power	Around 300 Watt
Power Supply	220V/50Hz/5A/1p
Scanning Galvanometer	High Speed Digital Motor
Focus System	Two Red Light with Outline Indication
Repetition Accuracy	+-0.002 mm
Min Linewidth	0.01mm
Linear Speed	Around 8000 mm/S
Marking Size	70*70mm/110*110mm/175*175mm/300*300mm
Weight	75kg
Operation System	Android
User Interface	0.4 Inch Touch Screen
Language	English Russian Thailand Korea Arabic Portuguese
Transport Package	Wood Carton
Specification	57*66*155CM
Trademark	IPS
Origin	China
HS Code	8456110090
Production Capacity	1000/ Year

Product Description

High Speed 30W Glass Date Fly CO2 Laser Marking Engraving Machine for Transparent Pet Water Bottle with CESupport customized staring screen and logo, multiple language

CO2 Laser marking machine is carbon dioxide laser marking. The active laser medium is a gas discharge which is air-cooled (water-cooled in higher power applications). The filling gas within the discharge tube consists of carbon dioxide and other auxiliary gas. Electron impact excites vibrational of molecule and produce a beam of infrared light with the principal wavelength bands centering on 10.6 micrometers.

Advantages of CO2 laser marking machine

1. Small size and easy to move. In a CO2 laser marking machine, almost all the accessories can be put in one cabinet. There are even portable CO2 laser marking machine if the power is small (10Watt). It is very easy to carry.2. High speed, high efficient, high precision, stable performance and no maintenance.3. Easy operation. Those who can operate a computer can learn it easily.4. Wide applications, can be used on most material.5. Save cost, no need for consumablesApplications:CO2 laser marking machine can mark on most non-metal material, such as bamboo, wood, paper, ABS/PVC epoxy resin, acrylic, leather, glass, ceramic, rubber and so on. It is widely used in pharmaceutical packaging, food packaging, beverage packaging, plastic, textile, leather, wood, handicrafts, electronic components, communications, watches, glasses, printing and other industries.

SPECIFICATIONS OF IPS-LC30W

Model	IPS-LC30W F
Laser Power	More than 30 watt
Laser Wavelength	10.64μm/9.3μm
Linear Speed	around 8000 mm/ s or more
Marking Size	75*75mm, 150*150mm, 200*200mm, 300*300mm
Min Linewidth	0.01 mm
Min Font Height	0.01 mm
Repetition Accuracy	+-0.002 mm
Overall Power	Less than 500 W
Power Supply	220V/50-60HZ/5A/1P
Laser Gun Brand	Synrad / CR/ DAWEI
Laser Gun Type	Carbon Dioxide Laser
Scanning System	Digital Scanning Galvanometer with high seep motor
Focus system	Two Red Light with accurate position
Cooling system	Built-in Air Cooling
Flying System	10.4 inch professional fly marking system based on Android
Weight	Around 75KG
Overall Dimension	57*66*155 CM
File Format Support	Support file from CORELDRAW,AUTOCAD,PHOTOSHOP directly. SupportAI,PLT,PCX,DXF,BMP file.Support all fonts from windows system. Support automatic coding, serial no, batch no, real time, variable barcode and QR code and databases.
Language support	English,Russian, Thailand, Korea ,Arabic ,Portuguese, etc
